COMPONENTS OF A SOLAR PV SYSTEM

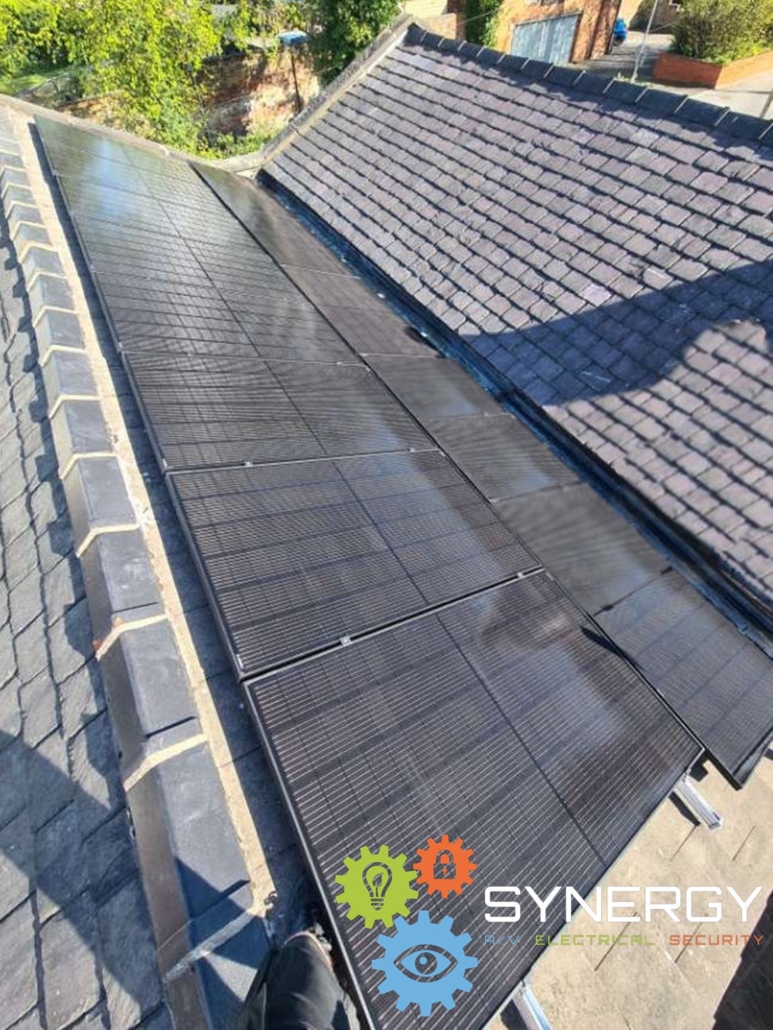

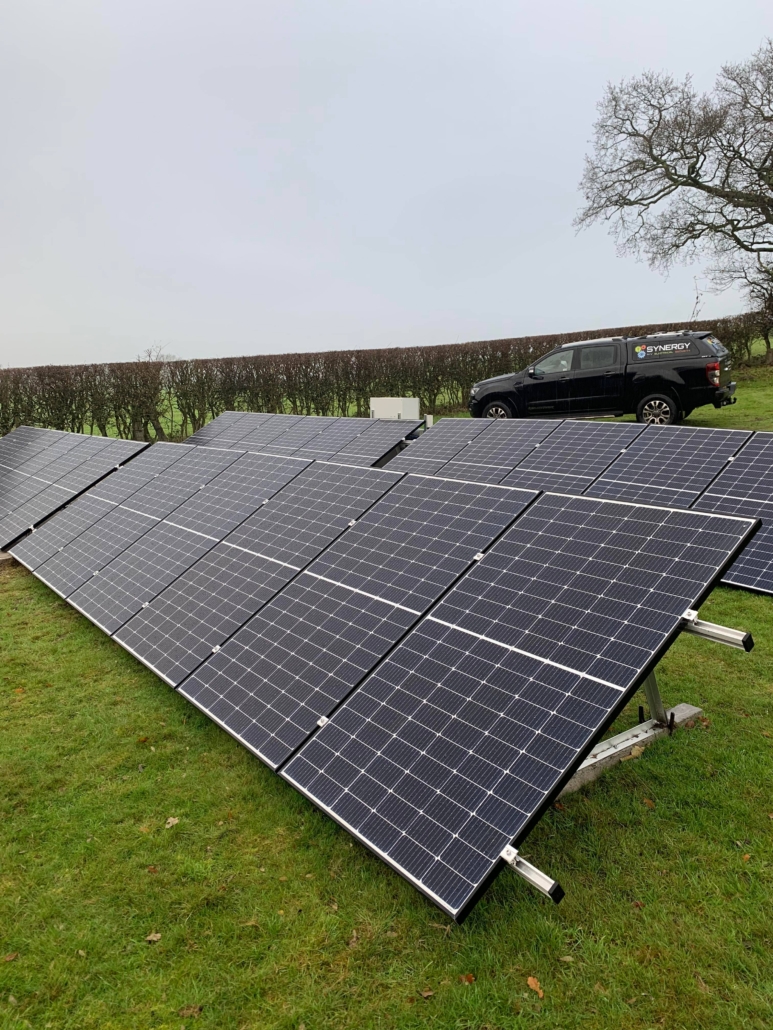

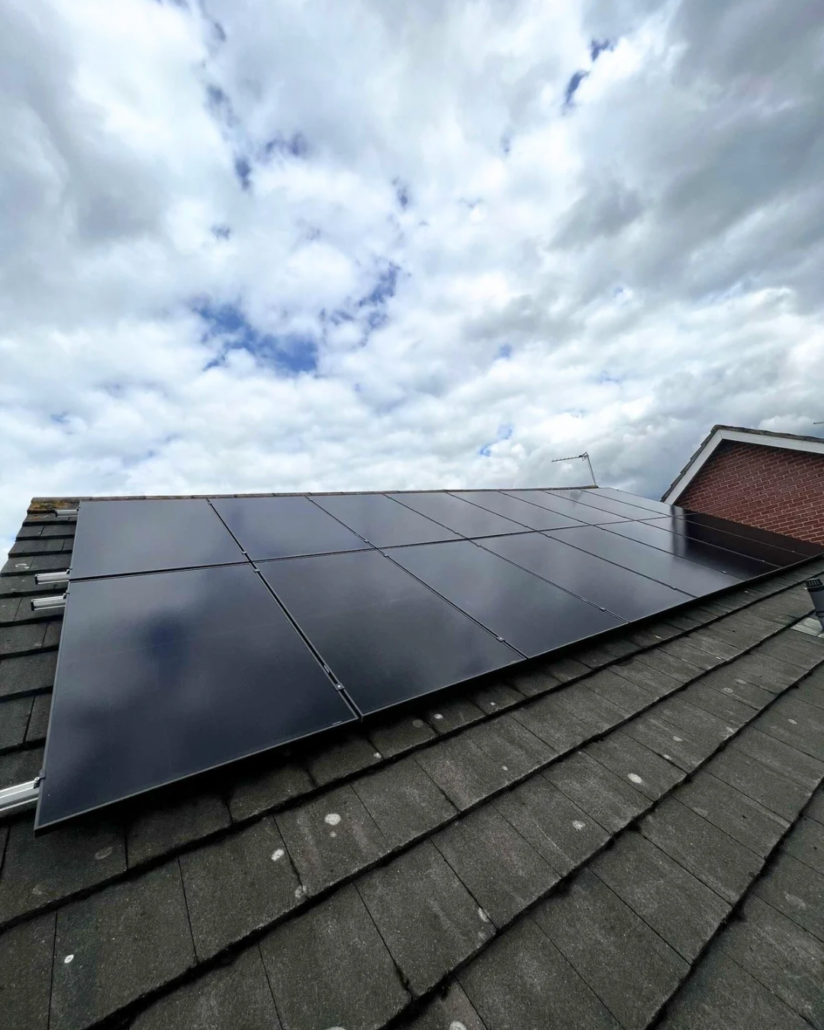

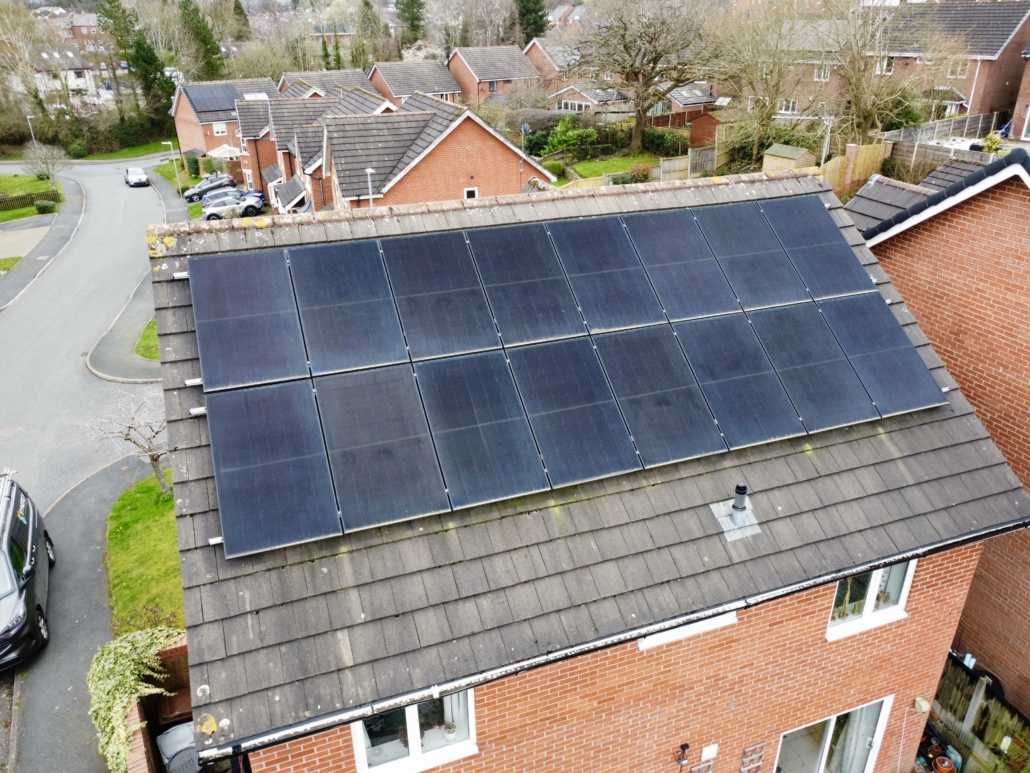

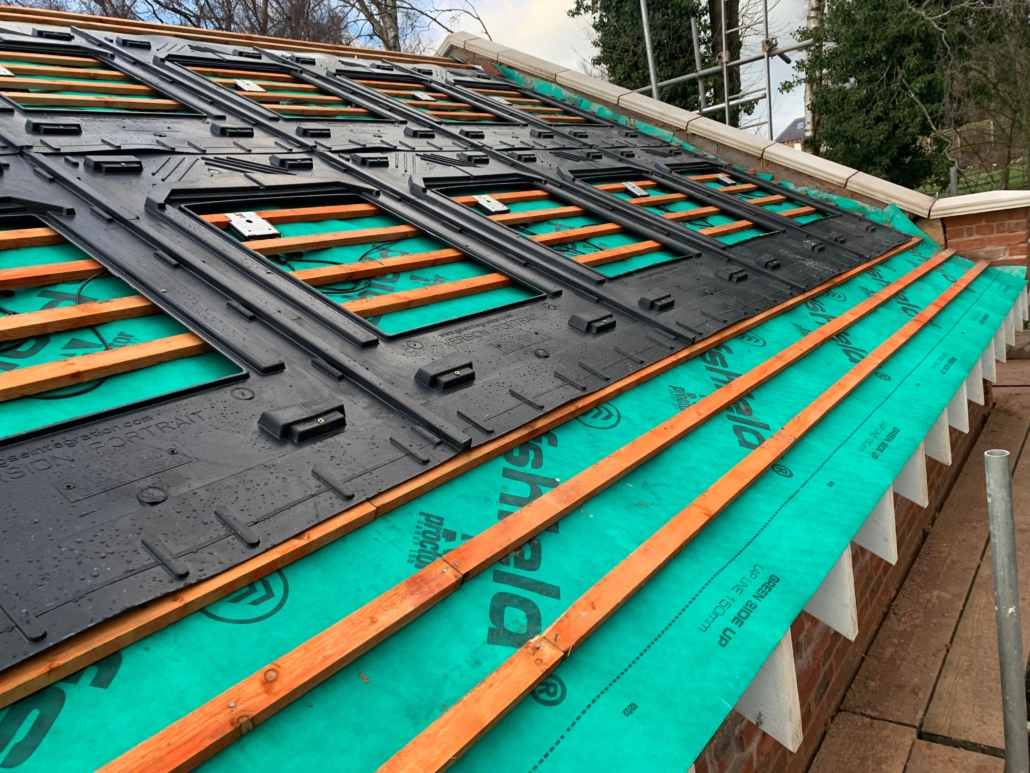

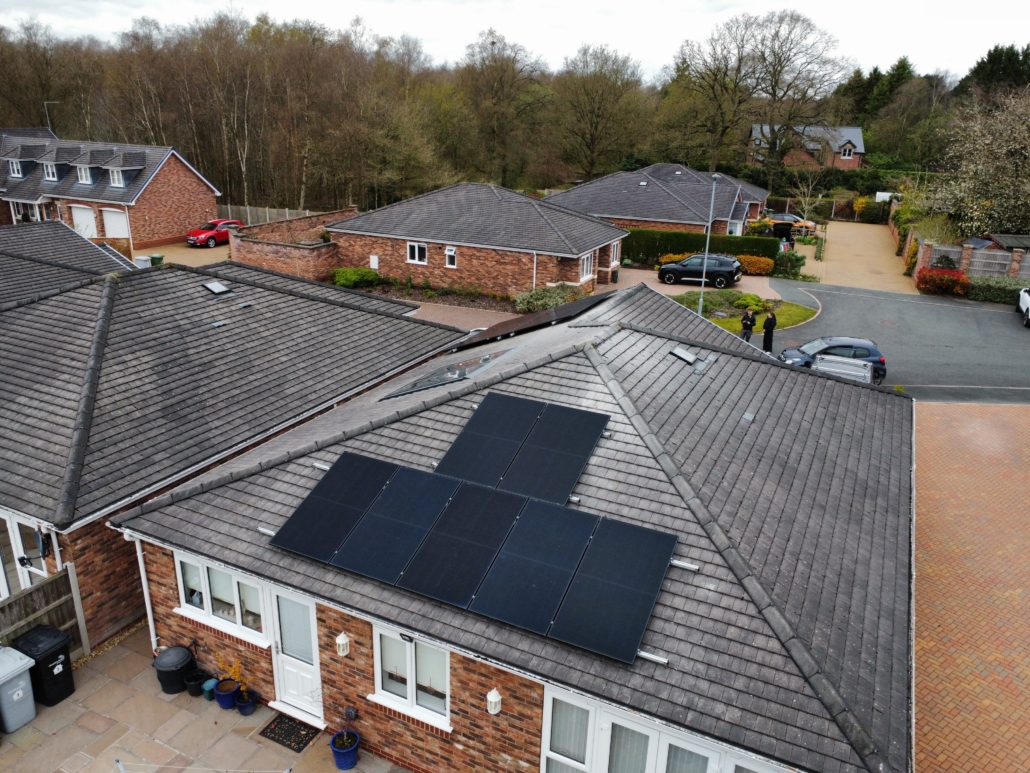

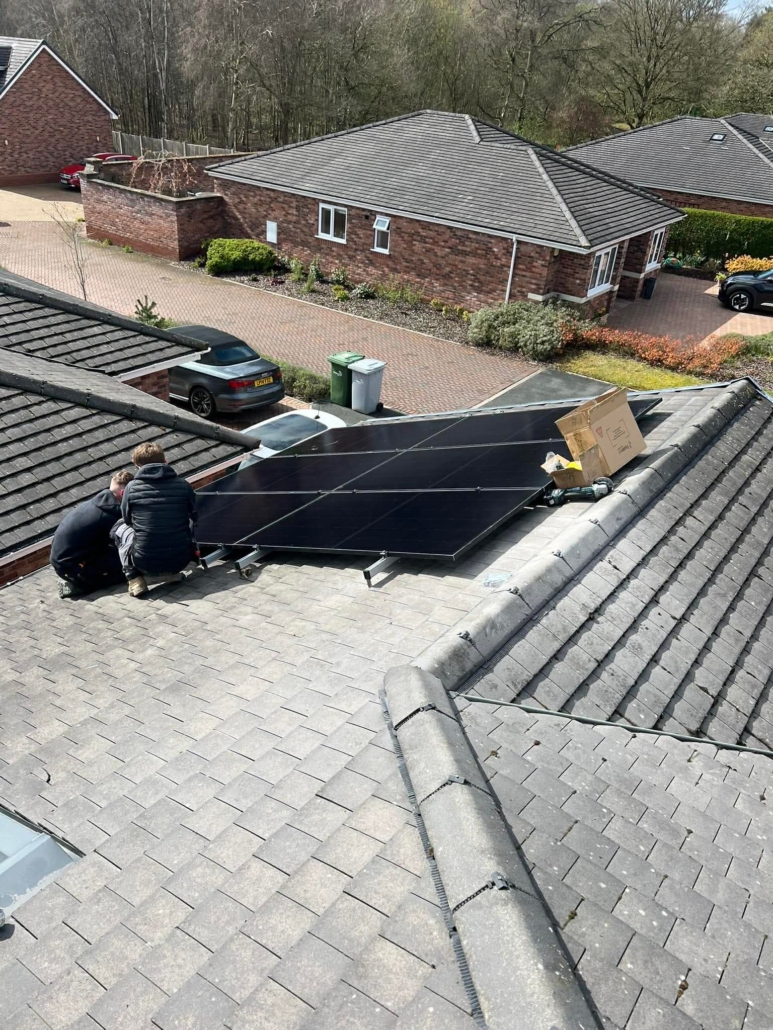

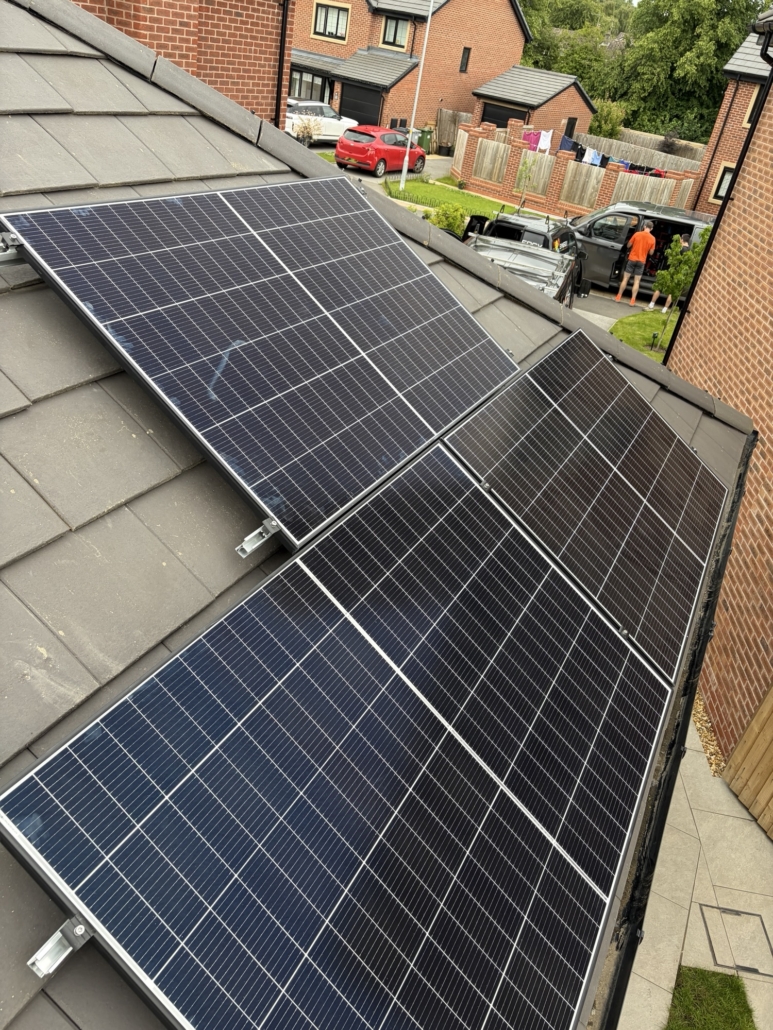

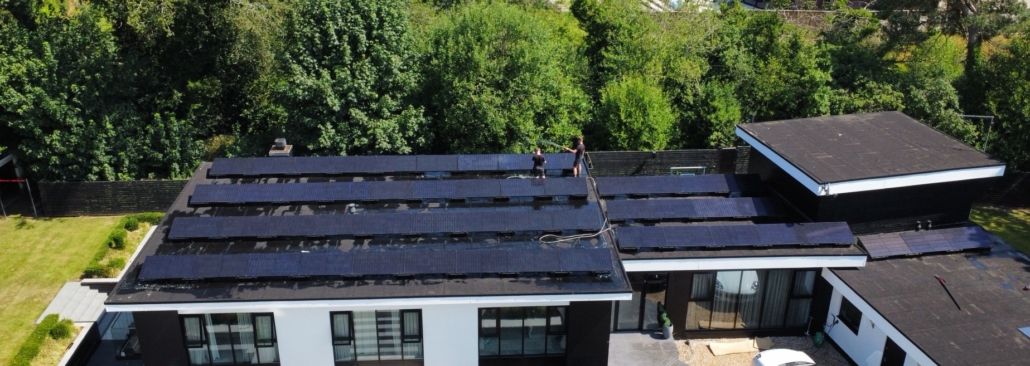

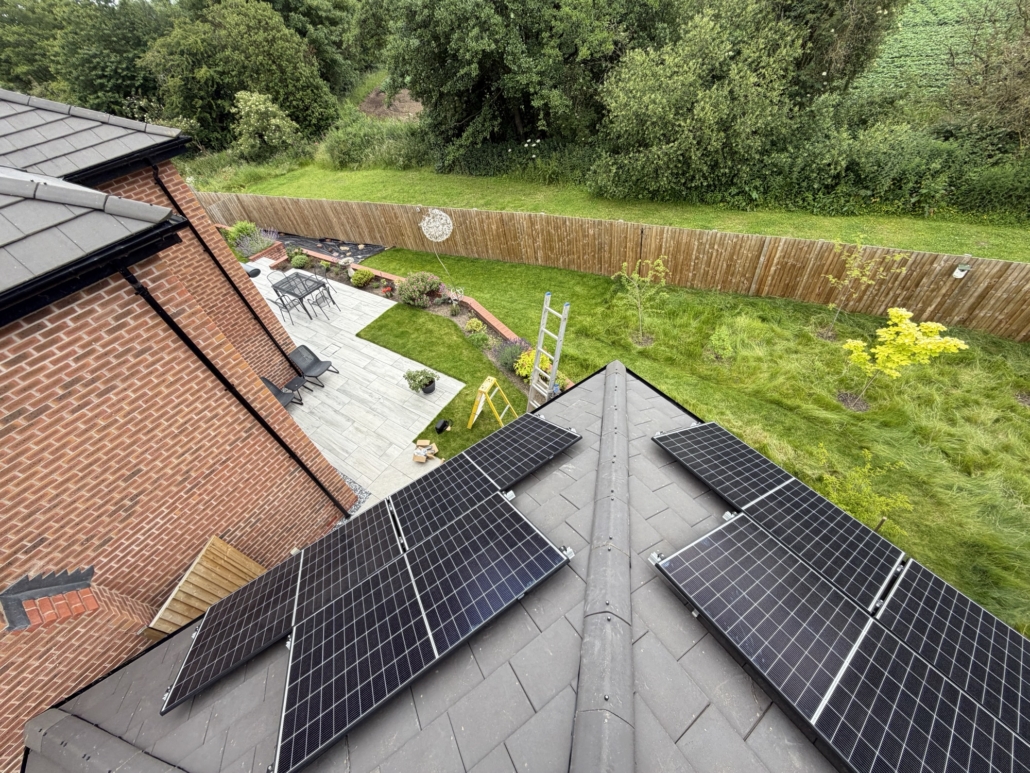

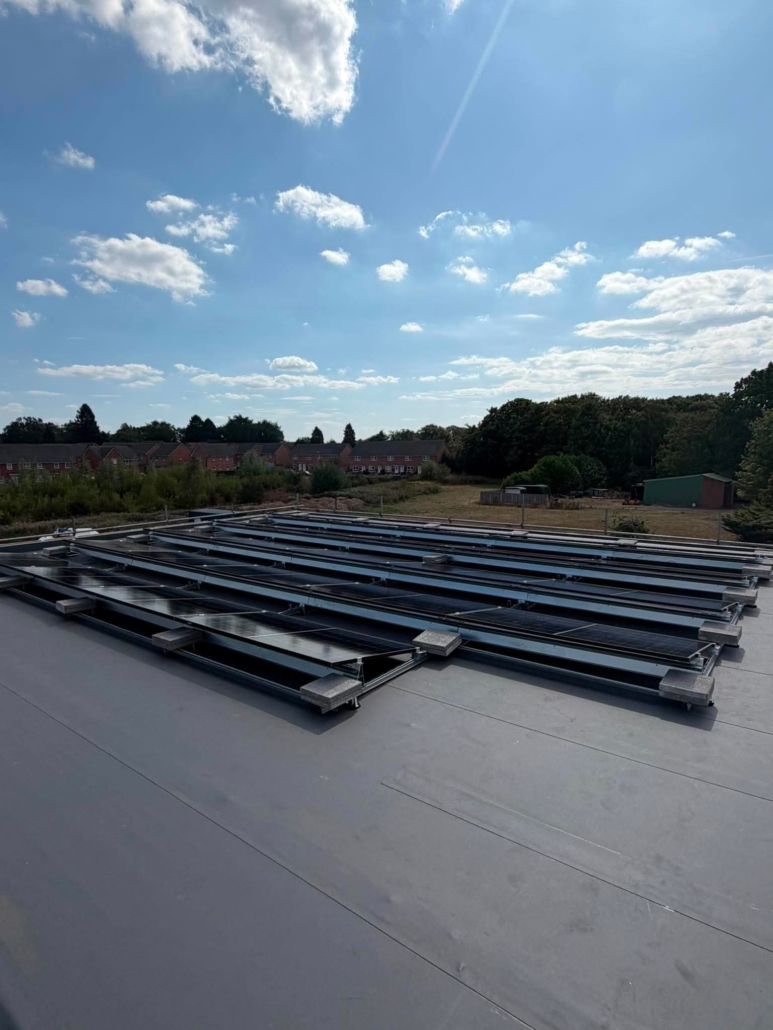

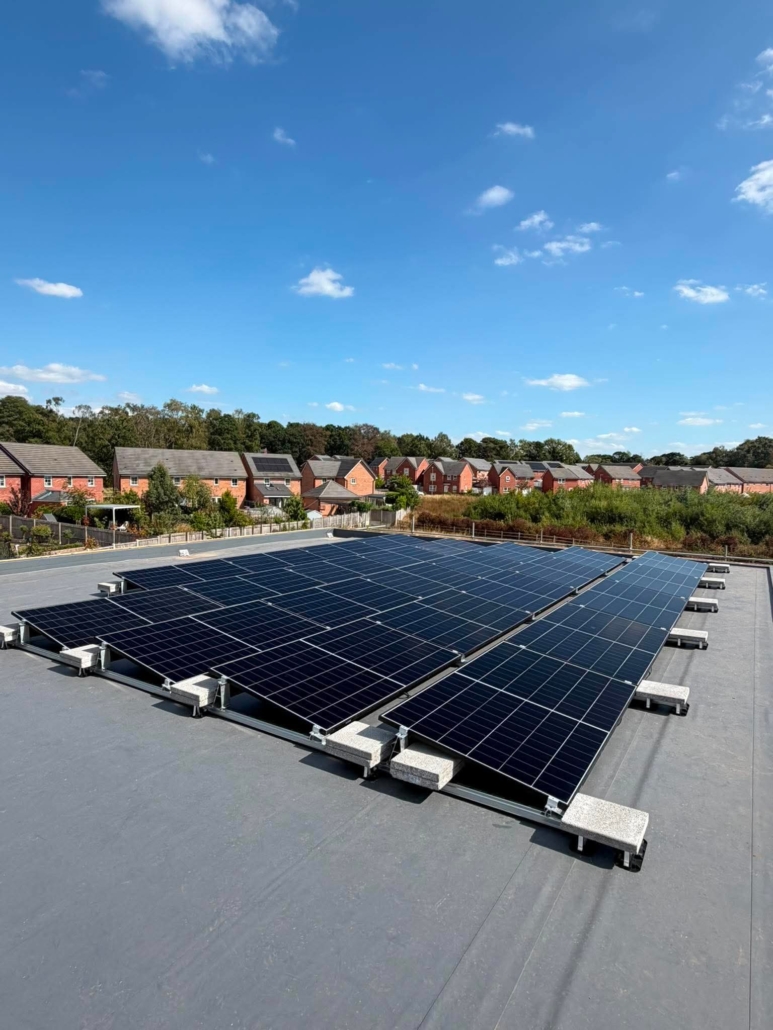

Solar Panels
Solar Panels are made up of a number of smaller silicon solar cells that convert sunlight directly into electricity.
These are typically protected between a glass front sheet, and a polymer back sheet, with everything being held together by an aluminium frame. They usually come pre-assembled with cables so that they can easily be connected together and to an inverter. Different solar panel types have varying efficiencies, which changes the amount of power that can be generated by a given area of rooftop.
Inverters
The inverter is the device in a system that converts the direct current (DC) electricity produced by the solar panels into the alternating current (AC) electricity that is typically used in homes. There are three main inverter technologies to choose from, string inverters, string inverters plus DC-to-DC optimizers, and micro-inverters. While string inverters are currently the most common option, the use of micro-inverters and DC optimizers continues to increase as costs go down.
String Inverters
When string inverters are used solar panels are connected in series into strings, and multiple strings are connected in parallel to each inverter, which is called an array.
String inverters tend to be the cheapest option as there is only one device to install for many solar panels, they are also typically more efficient at converting from DC to AC electricity. One problem with string inverters however is that when one solar panel in a string is shaded or has its output lowered by soiling from dust, bird droppings, etc, all the other modules in the string are also affected.
DC-to-DC Optimizer’s
DC-to-DC optimizers are used to solve the issue of shading on one solar panel affecting all modules in a string. They are smaller devices that connect to just one or two panels and optimize the output of each panel or panels individually. As they still output DC electricity they still need to be connected to a string inverter to convert to AC electricity.
Since they optimize output at a module level, DC-to-DC optimizers can increase the total output of a solar system, especially one that is subject to a lot of shading or soiling. The downside is that they increase the system cost compared to using string inverters alone.
Micro Inverters
Micro-inverters are similar to DC-to-DC converters in that they optimize the output of solar panels at the panel level. The difference is that they also perform the DC to AC conversion so that no string inverter is required at all. Micro-inverters may be mounted externally to the solar panel, or even come integrated into the module in what is called an AC module. Using micro-inverters can greatly reduce the complexity of the system and therefore the installation costs, however, due to their higher price, still typically result in a higher price for the system overall.
Inverter Functions
As well as converting the DC electricity from the sun into AC electricity, the inverter also performs other important functions, these include:
- Optimizing the power output of the solar panels.
- Controlling battery charging if a battery is installed and the inverter offers this function. Otherwise done by an external charge controller.
- Monitoring the system.
- Safety functions such as disconnecting from the grid in case of an outage.
Batteries
Including batteries in a solar PV system allows the energy produced by the solar panels to be stored for use after the sun goes down. They are almost always required in an off-grid system (unless another backup such as a diesel generator is available), however, there are also several reasons you may want to include them in grid-tied systems too:
- To allow the system to run during grid outages (systems without a battery will not run during an outage, even if the sun is shining).
- If the local utility or state laws do not allow electricity to be fed back into the grid.
- To sell the electricity back to the utility when power prices are higher, again depending on local utility or state laws.
Charge Controllers
Charge controllers are used when you want to include batteries in your system (and when you are not using a hybrid inverter).
They control the power going to the batteries, and may also provide the following functions:
- Prevent the batteries from being overcharged or overly discharged.
- Prevent the batteries from discharging at night via the solar panels.
- Provide monitoring of the batteries and solar panels.
We hope this has provided an in-depth introduction to Solar PV Systems and you are now excited to dive into a greener world!
